Descrizione del prodotto

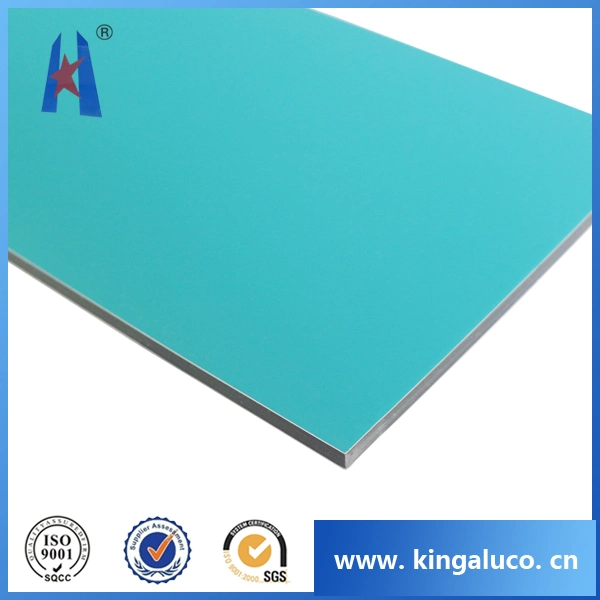

PVDF PE Wall Cladding ACP
Aluminum composite panel for outside wall decoration
1. Materials:
1) Front side: Alumnum roll coated with PVDF, PE, NANO
2) Core: Polyethe
3) Rear side: Alumnum coated with polyester or as requested
2. Procduct structure composed:
1) Protective film
2) Coating-basic level (polyester)
3) Ground coating
4) Aluminum Alloy sheet
5) Macromolecule adhesive
6) Polyethylene
7) Macromolecule adhesive
8) Aluminum Alloy sheet
9) Ground coating
3. Specifications:
Thickness: 1mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm (3mm and 4mm are most popular).
Length: 2, 440mm (Max. Length: Unlimited)
Width: 1, 220mm (Max. Width: 6000mm)
Weight: 5.5-6kg/sqm baesd on 4mm thickness
Thickness of aluminum foil: 0.15 - 0.5mm
Qty/20'FCL: 4mm/4000sqm, qty/20'FCL: 3mm/4500sqm
Colors: Silver, flash silver, gold, flash gold, white, red, black etc. (as requirements).
4. Features:
1)Excellent fireproof property
2)Super peeling strength
3)Perfect cold resistance performance
4)Excellent surface flatness and smoothness
5)Superior weather, corrosion, pollutant resistance
6)Even coating, various colors
7)Superior impact resistance
8)Lightweight and easy to process
9)Easy to maintain.
5. Application Scope
@ Building exterior curtain walls
. As decorative materials of interior walls, bathroom, doors, ceilings, kitchens, balconies of home and hotel and so forth
@ As decorative materials in the shops.
6. Packing: In bulk or pallet
7. Transprotation: By sea.
8. Terms of payment: T/T, L/C
Coating | Specification(mm) | Alu. thickness(mm) |
Common Plastic core& PE coating | 1220*2440*3 | 0.15 |
0.18 | ||
0.21 | ||
1220*2440*4 | 0.15 | |
0.18 | ||
0.21 | ||
0.3 | ||
0.4 | ||
0.5 | ||
Common plastic core& PVDF | 1220*2440*4 | 0.3 |
0.4 | ||
0.5 |
